3mm Evacuable Pellet Die
Part Number: 3055
Precision manufactured from hardened 440C stainless steel and includes a main body with a vacuum attachment, (2) polished stepped anvils, (2) vacuum o-rings, center-aligned die holder with 2" (w) x 3" (l) backplate, stainless steel funnel, pellet extractor and operating instructions.
Assembled Die Height With Stepped Anvils Without Sample Matrix: 37mm
Maximum Pellet Thickness: 3mm
Maximum Load: 0.50 Ton
Features
- simple three piece assembly
- stainless steel funnel is supplied for easy loading of sample matrix into die chamber
- pellet is formed in the die body then placed on the center-aligned die holder for analysis
- pellet can be removed for storage with use of the pellet extractor
Tip
- the evacuable design feature with the use of an
oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

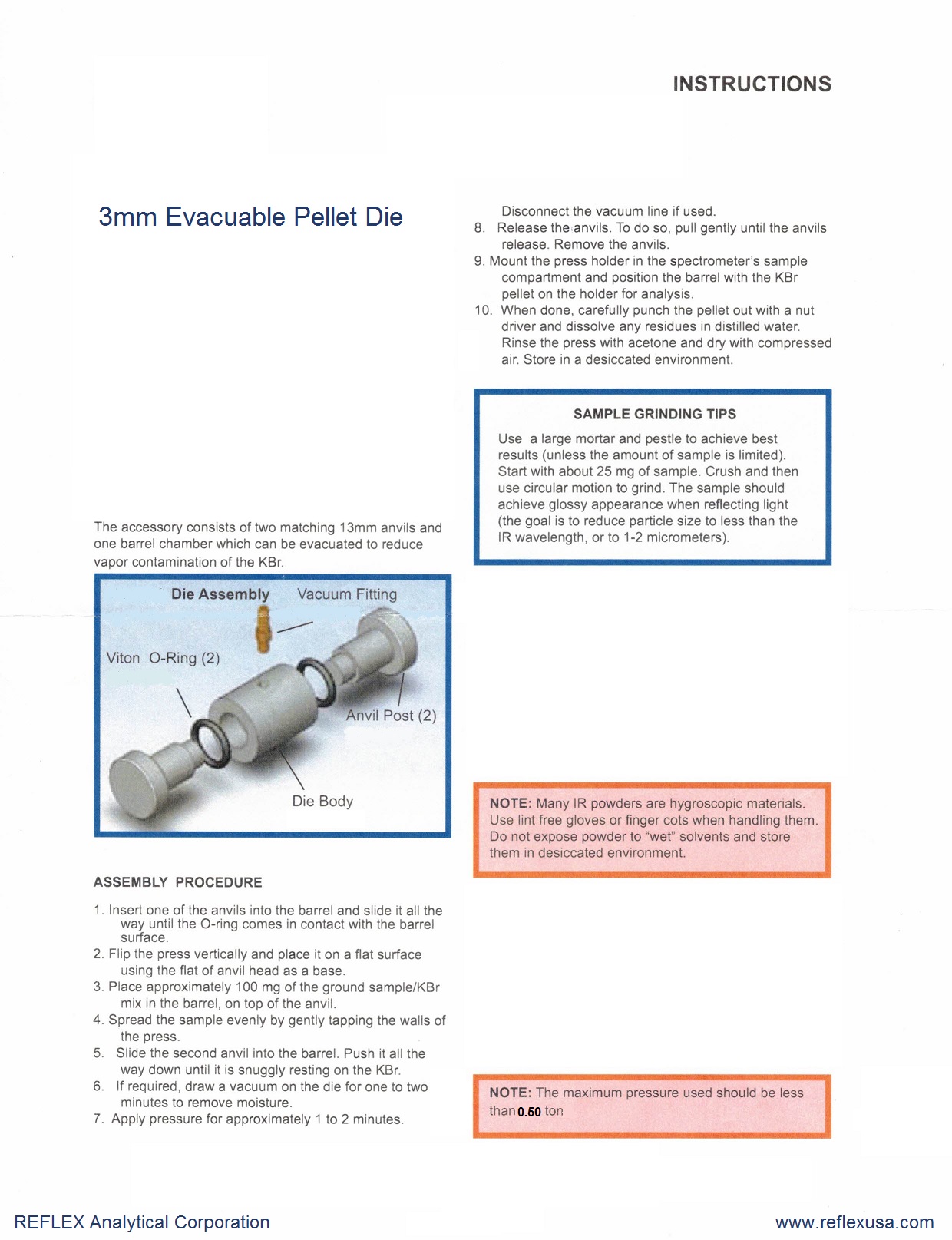

Operating Instructions
CLICK HERE
