35mm Evacuable Pellet Die
Part Number: 3350
Precision manufactured from hardened 440C stainless steel and includes a main body, a removable base with a vacuum attachment, (2) polished anvils, plunger, (2) vacuum o-rings, extractor ring and operating instructions.
Die Chamber Height Without Sample: 48mm
Each Die Anvil Thickness: 9.50mm
Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm
(accounts for locating die plunger 6mm into die chamber)
Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm
(accounts for locating die plunger 6mm into die chamber)
Maximum Load: 30 Tons
Tips
- typically the sample pellet is fabricated between two anvils although one anvil can be used
to fabricate a thicker sample pellet.
- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die
chamber wall.
- the evacuable design feature with the use of an
oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate
flashing of the powdered sample matrix during pellet fabrication.

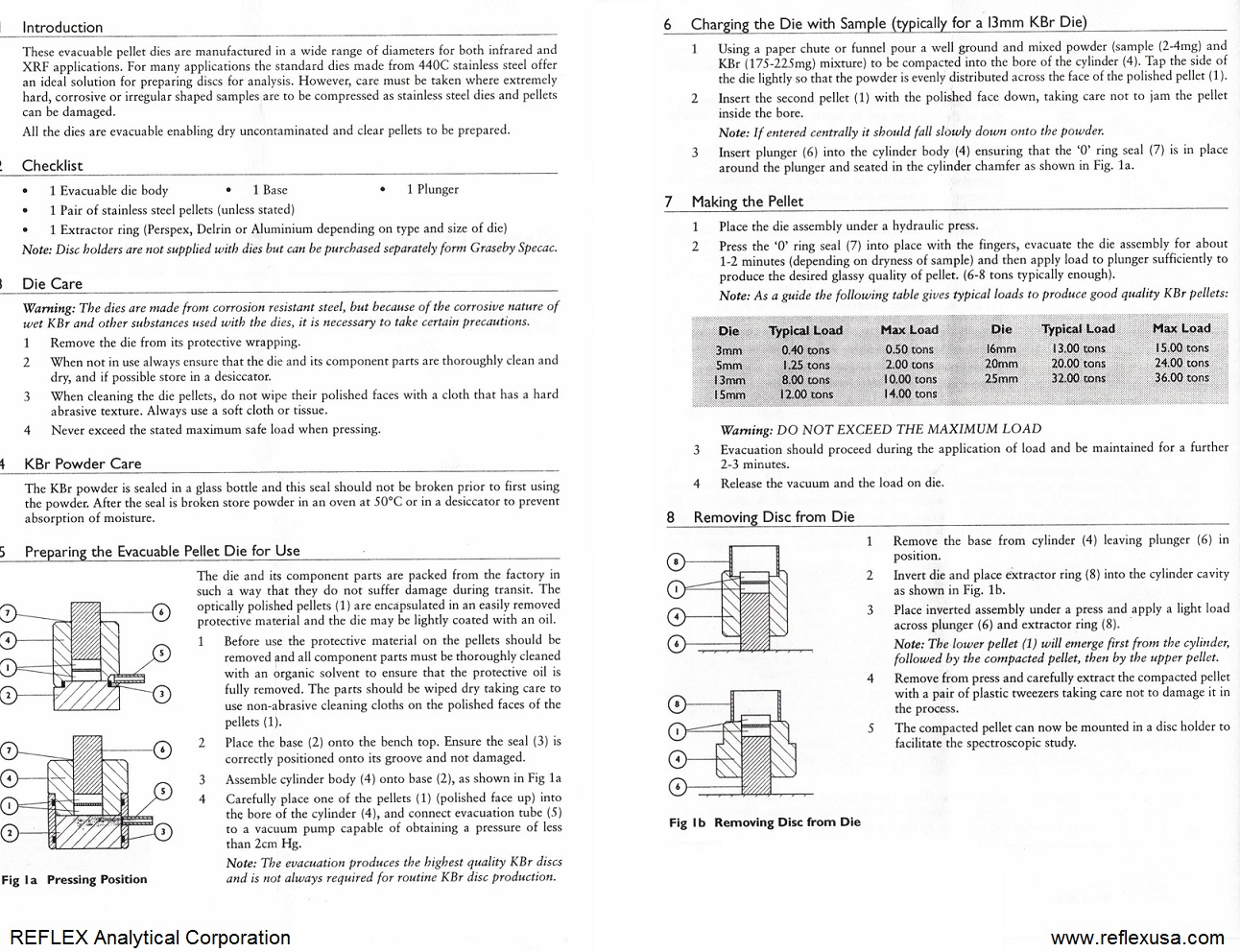

Operating Instructions
