2.25" Diameter Heated Pellet Die
Product Description

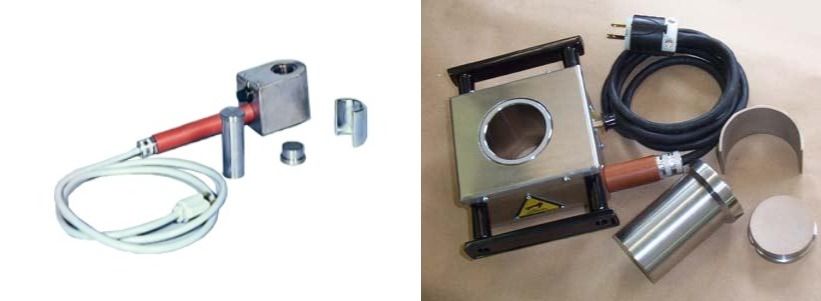

2.25" Diameter Heated Pellet Die (as pictured on the right-hand side)
Precision fabricated from high quality hardened stainless steel. The assembly includes a main body, an optically polished stainless steel anvil, a stainless steel plunger and a stainless steel sample extractor sleeve to facilitate sample removal.
The die can be heated up to 316°C maximum temperature. Manual temperature control is integrated on the main body for convenient regulation. At 204°C the maximum applied load rating on the 2.25" die is rated at 99,000 lbs.
The overall dimensions for the 2.25" die are 3.5" H x 4.25" W x 5" D. The assembly includes a 3' long electrical cord. Specify 110V or 220V when ordering.
Tips
- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.
- review of the chamber height to confirm there is adequate height to fabricate a pellet to the desired pellet thickness.
- ensure there sufficient area and height for the die assembly with sample between the top and bottom press rams.
