Tungsten Carbide Evacuable Pellet Dies

Tungsten Carbide Evacuable Pellet Dies

REFLEX Analytical offers the largest selection of evacuable pellet dies with tungsten carbide anvils. Tungsten carbide anvils are ideal for hard or abrasive powdered sample materials which may tend to mar the surface of stainless steel anvils.

The dies are precision fabricated from high quality hardened 440C stainless steel and tungsten carbide. The hardened 440C stainless steel die assemblies include a main chamber body with an evacuable base for vacuum attachment, (2) o-rings, (2) polished tungsten carbide anvils, a plunger, a sample extraction ring to facilitate sample removal and operating instructions. The evacuable design feature with the use of a small laboratory oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies.

Scroll below and order from the list of standard evacuable circular pellet die sizes. Sizes range from 5 - 50mm diameter. Non-standard diameters, customized geometries and dimensions are encouraged and available upon request for evacuable and non-evacuable type dies.

The dies are commonly used with our series of laboratory presses. CLICK HERE to preview other solid and semi-solid sampling accessories such as manual and auto lab presses, non-standard size evacuable pellet dies, pellet molds, XRF dies, square and rectangular dies, heated dies, polymer film makers, and much more.

5mm Tungsten Carbide Evacuable Die

5mm Tungsten Carbide Evacuable Die

Part Number 3060TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 31mm

Each Die Anvil Thickness: 5.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 14mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 19.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 2 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

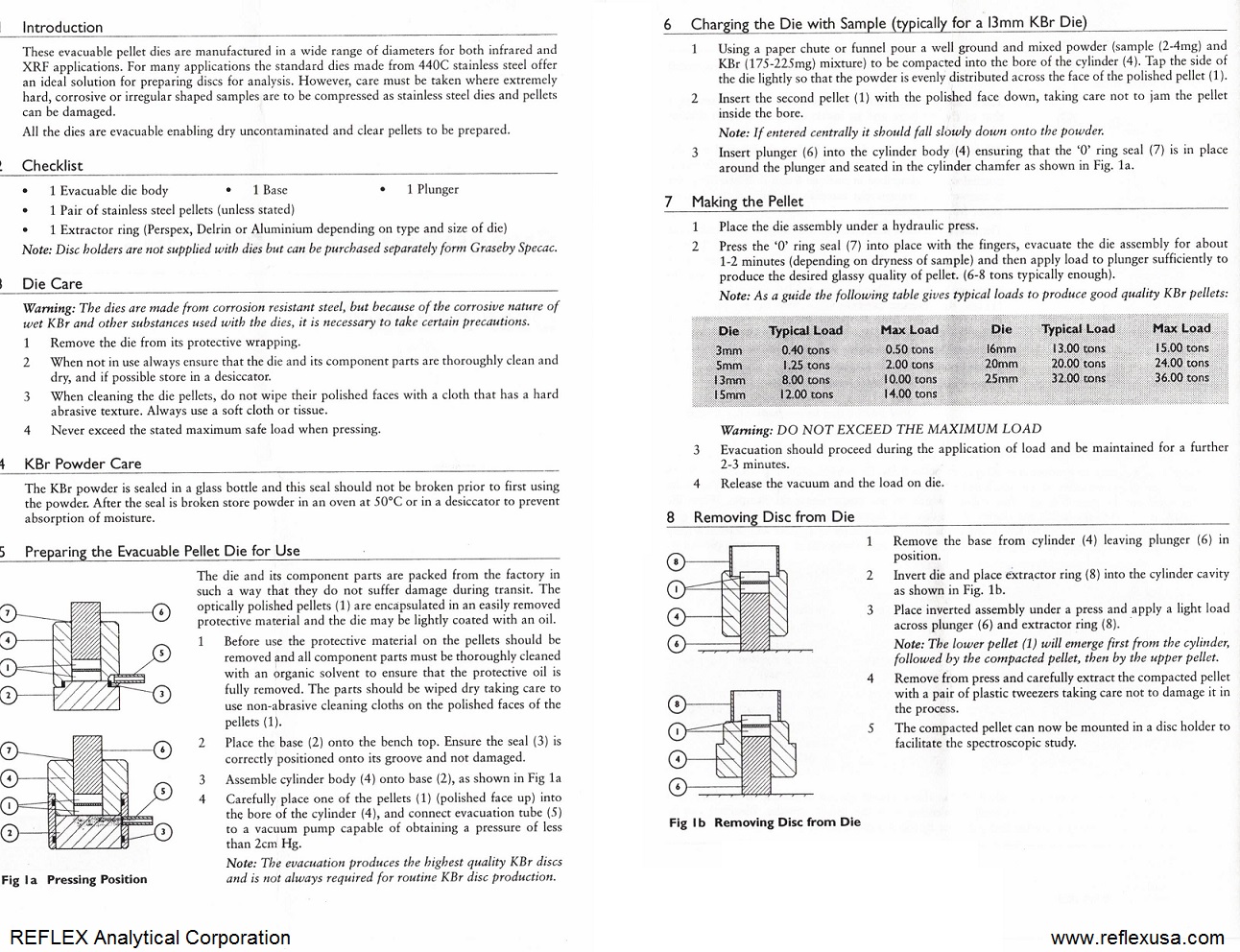

Operating Instructions CLICK HERE

$2,395.00

6mm Tungsten Carbide Evacuable Die

6mm Tungsten Carbide Evacuable Die

Part Number 3070TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 31mm

Each Die Anvil Thickness: 5.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 14mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 19.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 2 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$2,395.00

8mm Tungsten Carbide Evacuable Die

8mm Tungsten Carbide Evacuable Die

Part Number 3090TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 31mm

Each Die Anvil Thickness: 5.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 14mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 19.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 5 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$2,395.00

10mm Tungsten Carbide Evacuable Die

10mm Tungsten Carbide Evacuable Die

Part Number 3100TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 31mm

Each Die Anvil Thickness: 5.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 14mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 19.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 7 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$2,395.00

13mm Tungsten Carbide Evacuable Die

13mm Tungsten Carbide Evacuable Die

Part Number 3000TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 31mm

Each Die Anvil Thickness: 5.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 14mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 19.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 10 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$2,395.00

16mm Tungsten Carbide Evacuable Die

16mm Tungsten Carbide Evacuable Die

Part Number 3120TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 31mm

Each Die Anvil Thickness: 5.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 14mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 19.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 15 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$2,595.00

20mm Tungsten Carbide Evacuable Die

20mm Tungsten Carbide Evacuable Die

Part Number 3165TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 24 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$4,495.00

25mm Tungsten Carbide Evacuable Die

25mm Tungsten Carbide Evacuable Die

Part Number 3170TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 30 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$4,695.00

32mm Tungsten Carbide Evacuable Die

32mm Tungsten Carbide Evacuable Die

Part Number 3300TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 30 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$4,995.00

35mm Tungsten Carbide Evacuable Die

35mm Tungsten Carbide Evacuable Die

Part Number 3350TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 30 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$5,295.00

40mm Tungsten Carbide Evacuable Die

40mm Tungsten Carbide Evacuable Die

Part Number 3290TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 30 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$5,495.00

45mm Tungsten Carbide Evacuable Die

45mm Tungsten Carbide Evacuable Die

Part Number 4047TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 30 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$6,295.00

50mm Tungsten Carbide Evacuable Die

50mm Tungsten Carbide Evacuable Die

Part Number 4345TC

Precision manufactured and includes hardened 440C stainless steel die components (main body, a removable base with a vacuum attachment and plunger), polished tungsten carbide anvils (2), vacuum o-rings (2), extractor ring and operating instructions.

Die Chamber Height Without Sample: 48mm

Each Die Anvil Thickness: 9.50mm

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber)

Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber)

Maximum Load: 30 Tons

Tips

- preferred for powdered abrasives, ceramics and hard mineral-like materials

- typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet.

- allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall.

- the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication.

Operating Instructions CLICK HERE

$7,795.00
