Non-Evacuable Circular Pellet Dies

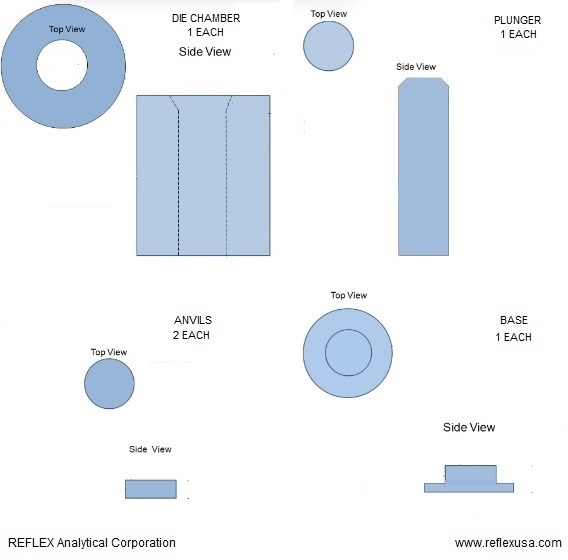

Representative Drawing
CLICK HERE(up to 25.4mm diameter. specify diameter)
Precision manufactured from hardened 440C stainless steel and includes a main body, a removable base, (2) polished anvils, plunger and extractor ring. The overall assembled height including the die chamber, baseplate, two anvils and plunger but without sample powder is 104mm. The die chamber only dimensions are 50mm height x 45mm outside diameter with each anvil measuring 10mm thickness (two anvils are typically used for pellet fabrication although one anvil could be used for thicker pellet fabrication).
Maximum Load: Dependent Upon Die Size
Optional: Tungsten Carbide Anvils
Optional: 200°C Heating Jacket and Digital Temperature Controller
Optional: Centered Thermocouple Port for a customer supplied thermocouple and independent temperature read out.
