ATRMax II Trough Plate System
Product Description

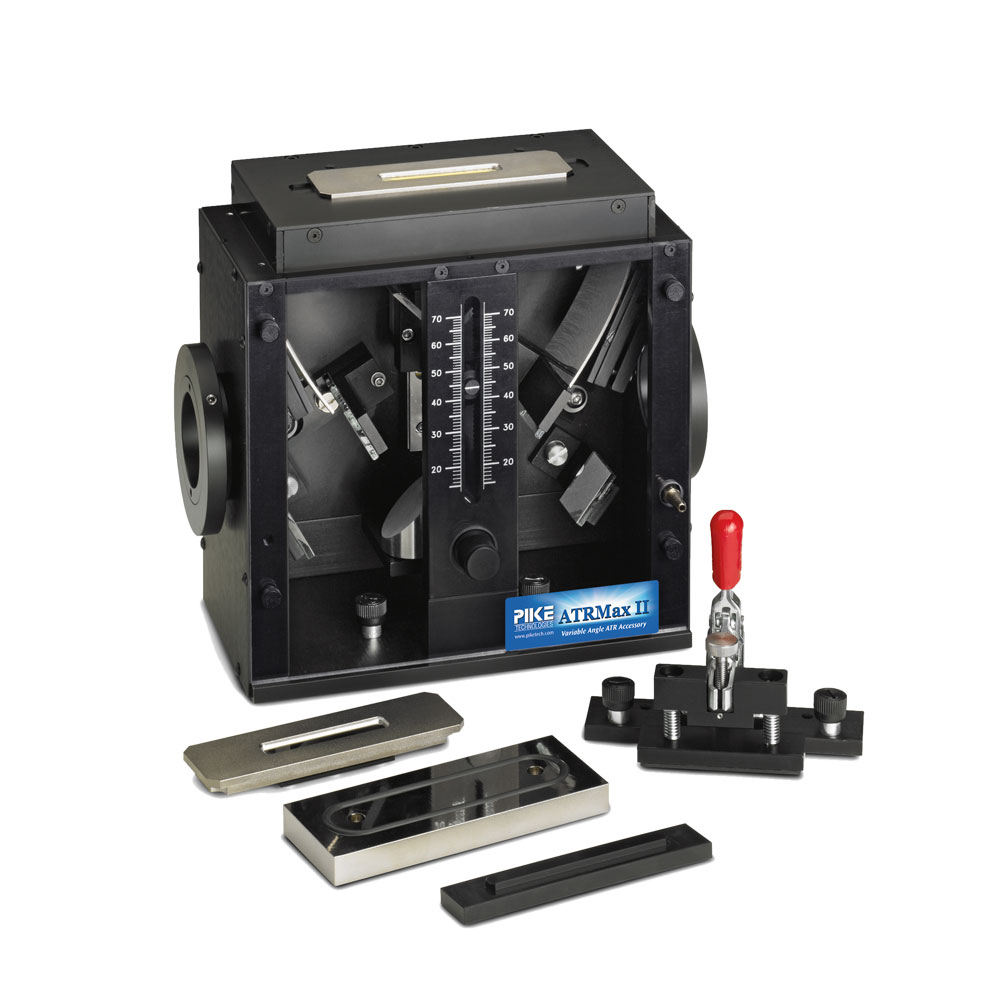

ATRMax II Variable Angle Horizontal Attenuated Total Reflectance Trough Plate System
Includes: 45° ZnSe trapezoid trough plate, volatiles cover and powder press
Features:
- variable range of incident angles from 25° to 65° with adjustable 1° increments
- depth of penetration from 0.50 to 10μm
Analytical Technique: Attenuated Total Reflectance ATR
Application: Liquids and Solids Sample Analysis
Optional and Interchangeable Trough and Flat Top Plates: ZnSe Ge Silicon
Top Plate Options: Flow Through, Thermo-Circulator Heated Flow Through Plate, Electrically Heated Flat Plate up to 120°C and Electrically Heated Flow Through Plate up to 120°C
Optional and Interchangeable: 360° Manual or Automated Rotating Wire Grid Polarizers
