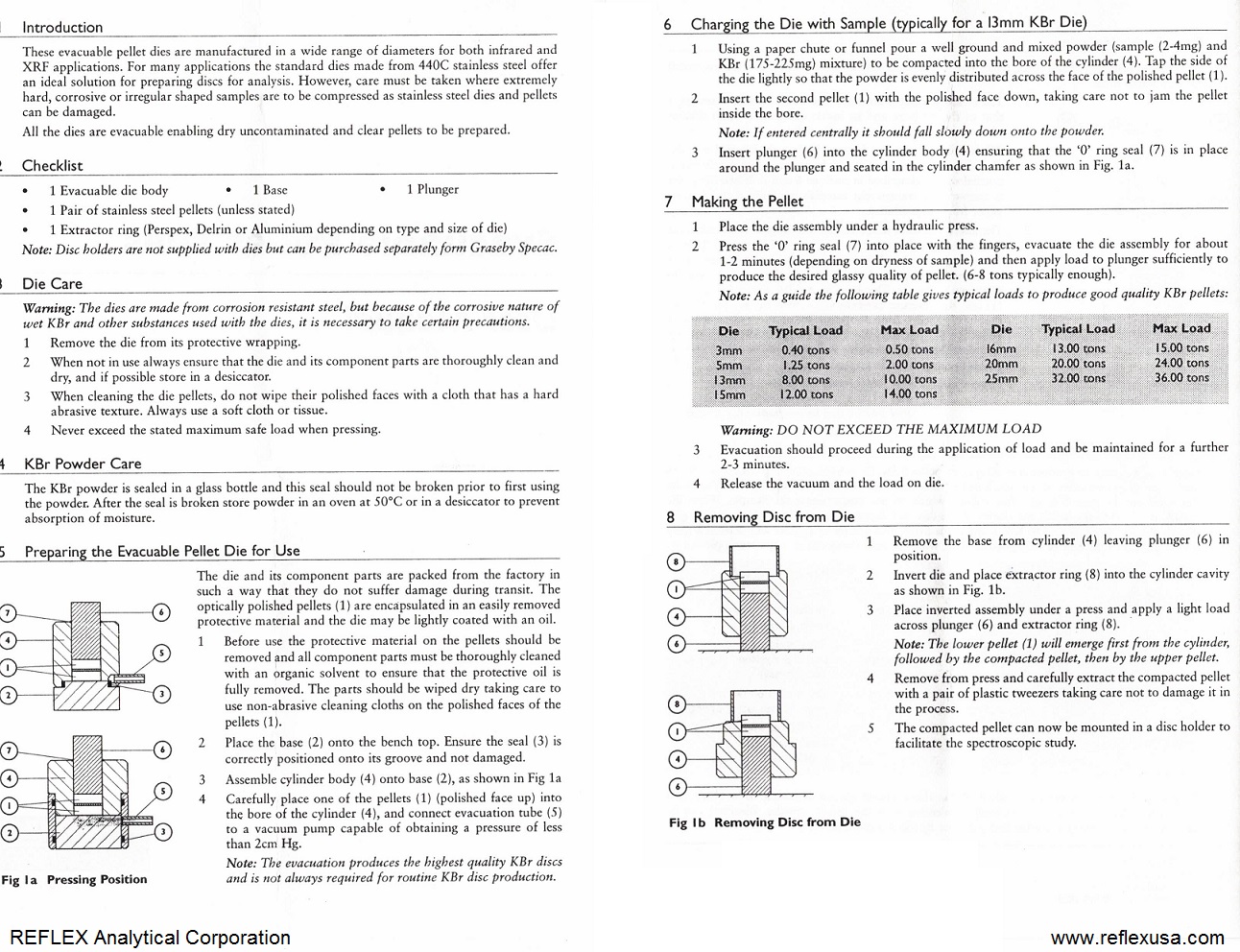

 XRF Conversion Die Kit Complete Includes: 40mm Evacuable Die with 20mm, 25mm and 32mm Conversion Die Kits. Part Number: 3400 Precision manufactured from hardened 440C stainless steel and includes a main 40mm die body, a removable base with a vacuum attachment, 20mm, 25mm and 32mm conversion die kits, each die size with (2) polished anvils, plunger, vacuum o-rings, extractor ring and operating instructions. Die Chamber Height Without Sample: 48mm Each Die Anvil Thickness: 9.50mm Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber) Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber) Maximum Load: 30 Tons Tips - typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet. - allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall. - the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication. CLICK HERE for more information. $7,395.00 |  40mm Evacuable Pellet Die Part Number: 3290 Precision manufactured from hardened 440C stainless steel and includes a main body, a removable base with a vacuum attachment, (2) polished anvils, plunger, (2) vacuum o-rings, extractor ring and operating instructions. Die Chamber Height Without Sample: 48mm Each Die Anvil Thickness: 9.50mm Maximum Height In Die Chamber For Uncompressed Sample Matrix Using Two Anvils: 23mm (accounts for locating die plunger 6mm into die chamber) Maximum Height In Die Chamber For Uncompressed Sample Matrix Using One Anvil: 32.50mm (accounts for locating die plunger 6mm into die chamber) Maximum Load: 30 Tons Tips - typically the sample pellet is fabricated between two anvils although one anvil can be used to fabricate a thicker sample pellet. - allow 6mm minimum to locate the die plunger into the die chamber in order to follow the die chamber wall. - the evacuable design feature with the use of an oil-less vacuum pump permits easy installation of anvils and plunger without the vacuum resistance normally associated with non-evacuable dies due to the precision fabrication and tight tolerances to mitigate flashing of the powdered sample matrix during pellet fabrication. Operating Instructions CLICK HERE $3,295.00 |
 20mm XRF Conversion Die Kit Part Number: 3165CDK Includes a hardened stainless steel chamber insert, plunger and anvils(2) for the 40mm XRF Conversion Die. Maximum Load: 24 Tons $1,895.00 |  25mm XRF Conversion Die Kit Part Number: 3170CDK Includes a hardened stainless steel chamber insert, plunger and anvils(2) for the 40mm XRF Conversion Die. Maximum Load: 30 Tons $1,895.00 |
 32mm XRF Conversion Die Kit Part Number: 3300CDK Includes a hardened stainless steel chamber insert, plunger and anvils(2) for the 40mm XRF Conversion Die. Maximum Load: 30 Tons $1,895.00 |
