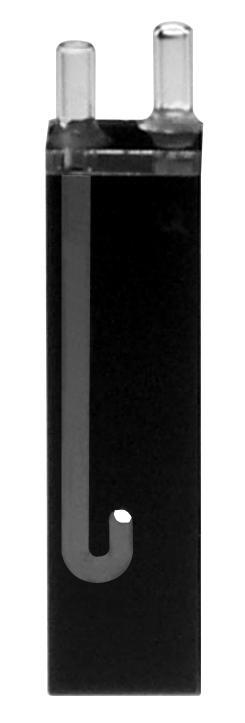

Type 50 IR Quartz Black Masked Flow Through Cuvettes

Type 50 IR Quartz Black Masked Flow Through Cuvettes
$199.00
PART:  MATERIAL:  DIAMETER:  PATH:
Send This Page to a Colleague

Product Description

Type 50 IR Quartz Black Masked Flow Through Cuvettes

Please select from the drop down menus and assure the part number's last digit(s) corresponds to the desired pathlength. Depending on the selected pathlength, the unit pricing will adjust either up, down or remain the same. REFLEX Analytical welcomes your contact if assistance is required.

Precision fabricated cuvettes with high quality optical properties for optimal spectral performance. Assembled by direct fusion without the use of adhesives ensuring resistance to chemical attack and extremes of temperature. Custom cuvettes are encouraged and available upon request.

Standard Black Masked Flow Through Cuvettes. Dimensions 45mm height x 12.50mm wide. Inside tube diameter 1mm.

Application: UV-Vis-NIR

Material: IR Quartz

Standard Pathlengths: 10mm 20mm 30mm

Product Specs

Application:
UV-Vis-NIR
Material:
IR Quartz
Dimensions:
45mm height x 12.50mm wide
Percentage Transmission:
> 82% @ 2730nm
Matching Tolerance:
Within 0.5% @ 2730nm

Product Resources

Cuvettes and Cells Catalog

Download the Cuvettes and Cells Catalog to preview pathlength, cell dimensions and cell volume.

Transmission Performance Curves

Download the transmission performance curves for UV Quartz, IR Quartz and glass materials.

Pathlength (mm)Width (mm)Height (mm)Part NumberVolume (ml)
1012.54550-I-100.01
2012.54550-I-200.016
3012.54550-I-300.025
