Type 18 UV Quartz Micro Cuvettes

Type 18 UV Quartz Micro Cuvettes
$129.00
PART:  MATERIAL:  PATH:
Send This Page to a Colleague

Product Description

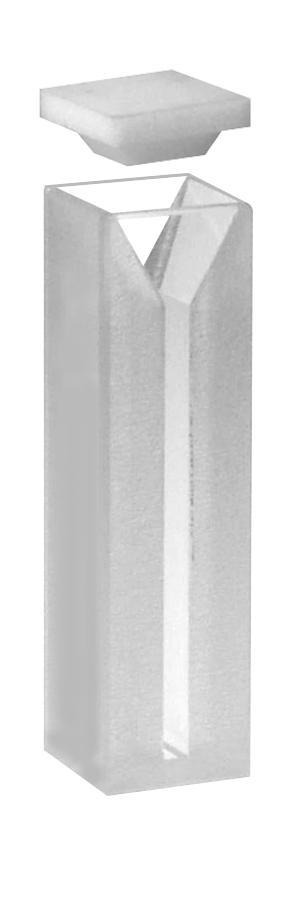

Type 18 UV Quartz Micro Cuvettes

Please select from the drop down menus and assure the part number's last digit(s) corresponds to the desired pathlength. Depending on the selected pathlength, the unit pricing will adjust either up, down or remain the same. REFLEX Analytical welcomes your contact if assistance is required.

Precision fabricated cuvettes with high quality optical properties for optimal spectral performance. Assembled by direct fusion without the use of adhesives ensuring resistance to chemical attack and extremes of temperature. Custom cuvettes are encouraged and available upon request.

Standard Micro Cuvettes with fitted cover. Satin finish on two sides.

Standard Pathlengths: 5mm 10mm 20mm

Product Specs

Application:
UV-Vis
Material:
UV Quartz
Dimensions:
45mm height x 12.50mm wide. Inside width 2mm.
Percentage Transmission:
> 80% @ 200nm
Matching Tolerance:
Within 0.5% @ 200nm

Product Resources

Cuvettes and Cells Catalog

Download the Cuvettes and Cells Catalog to preview pathlength, cell dimensions and cell volume.

Transmission Performance Curves

Download the transmission performance curves for UV Quartz, IR Quartz and glass materials.

Pathlength (mm)Width (mm)Height (mm)Part NumberVolume (ml)
512.54518-Q-50.35
1012.54518-Q-100.7
2012.54518-Q-201.4
