Infrared Filters

Infrared Filters

REFLEX Analytical complements their product line of infrared optics and lenses with infrared (IR) filters. An IR filter is an optic which is specifically fabricated to remove visible light and only pass infrared light. In military, security and surveillance applications the near and mid-infrared are of most interest, and these are usually divided into the shortwave infrared band between 0.7 and 4µm, the midwave infrared band between 4 and 6µm, and the longwave infrared band between 8 and 15µm.

Why the different infrared labels? For military applications what is of interest is the radiation that can penetrate the atmosphere and be detected. It turns out that the short, mid and longwave infrared bands correspond to those wavelengths that easily penetrate air without being rapidly absorbed or scattered. The shortwave infrared band is associated with jet engine exhausts, gun barrel exhaust gases, munition explosions and other hot objects. The midwave infrared band is associated with running turbine and piston engines, and other high temperature operating objects. The longwave infrared band is associated with human body heat, structures or buildings, and other objects at similar temperatures.

REFLEX Analytical offers a series of IR filter types depending upon the application's requirement. Each IR filter type is wavelength and application dependent. Scroll below for examples, spectral transmission curves, pricing and order details. Unit pricing is based on in-stock status. If the stock is depleted, unit pricing is subject to change and becomes based on current material availability, production criteria and related costs.

The export of this product without proper licensing is strictly prohibited and falls under ITAR per title 22, CFR, parts 120-130. Contact the U.S. Department of State.

Mid-Infrared Bandpass Filters (CWL 2.70µm, 2.95µm, 3.46µm, 3.6µm, 4.0µm, 4.26µm, 4.67µm, 5.30µm, 10.0µm and 10.6µm) CLICK HERE to download the product sheet.

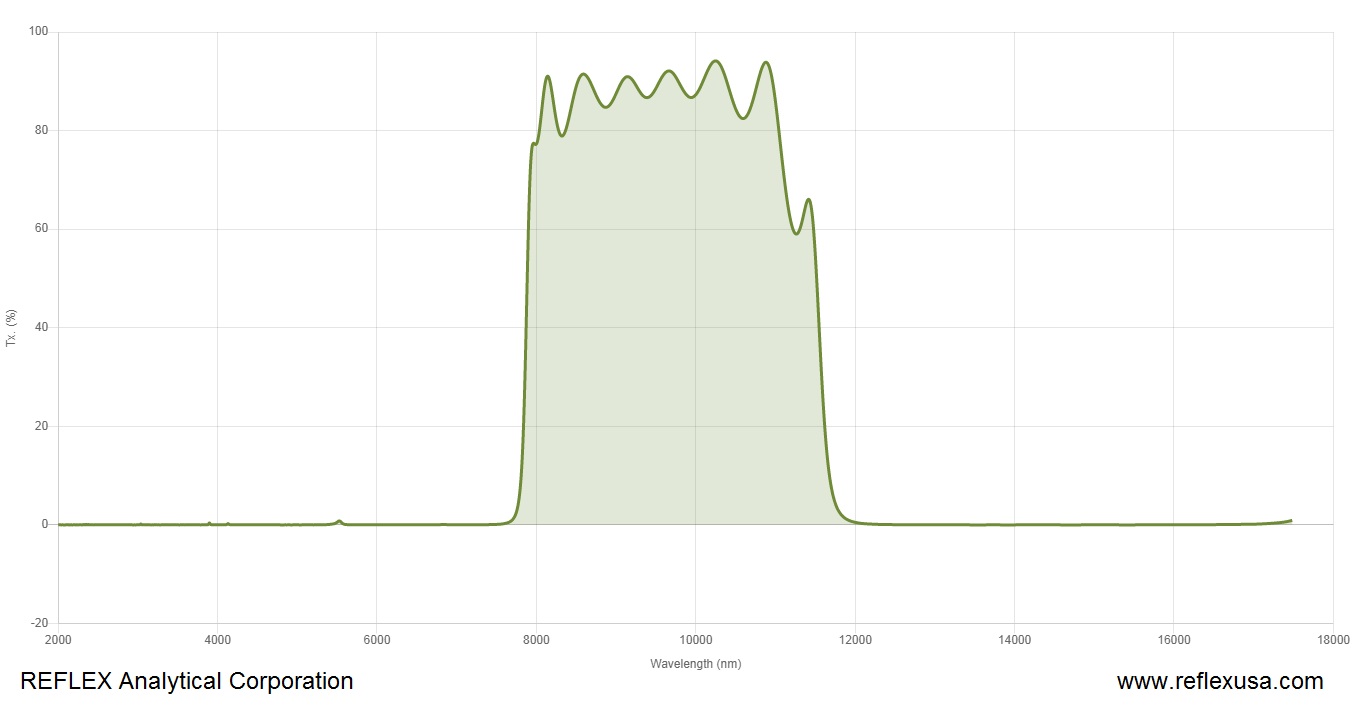

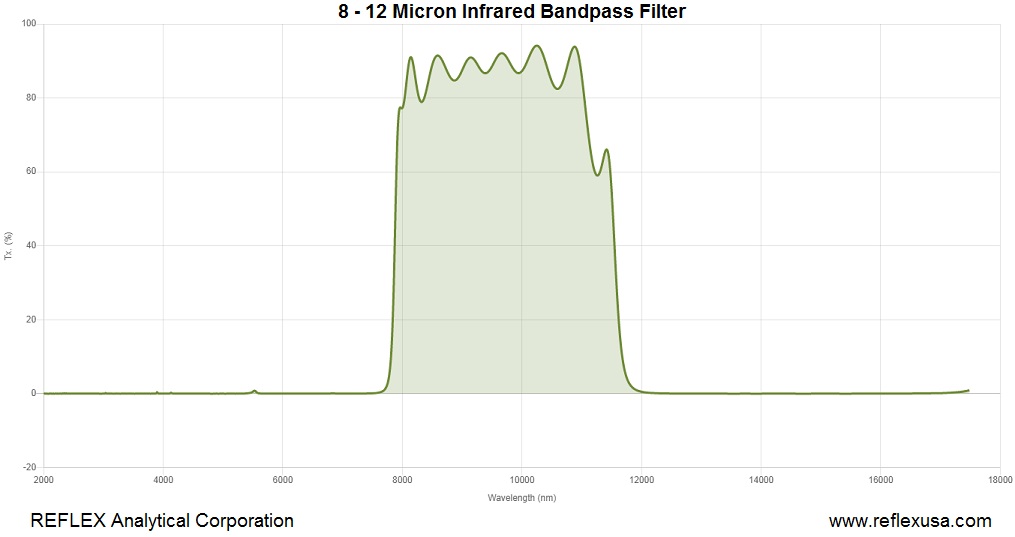

8 - 12µm Infrared Bandpass Filter average 80% transmittance between 8 - 12µm blocking less than 0.10% transmittance from UV - 20µm. Also available to order below are Infrared Broadband Filters for the wavelength range 3 - 5µm, 8 - 12µm, 2 - 14µm and 8 - 14µm.

1.1 - 25µm Infrared Broadband Filter 1.1 - 25µm Infrared Broadband Filter The 1.1 - 25µm infrared filter is typically used to detect infrared radiation remotely to determine the temperature of objects. This is termed thermography and also know as forward looking infrared (FLIR). Thermography (thermal or FLIR imaging) is mainly used in military, law enforcement and industrial applications but the technology has reached the public market in the form of infrared cameras on automobiles. Thermographic and FLIR cameras detect radiation in the infrared range of the electromagnetic spectrum (0.9 - 14µm) and produce images of that radiation. FLIR devices allow personnel to see objects in total darkness, through smoke, and other challenging conditions without revealing their presence or offering awareness the perimeter is being monitored. Night vision devices are not required with thermal or FLIR imagers since heat generating objects reveal themselves. Contact REFLEX Analytical to discuss your requirement. Custom components are encouraged and quoted upon request.	8 - 12µm Infrared Bandpass Filter 8 - 12µm Infrared Bandpass Filter The 8 - 12µm infrared bandpass filter is used in many applications including infrared tracking (also known as infrared homing). Infrared homing is a passive system in which heat generated by the target is detected and homed on. Typically used in the anti-aircraft role to track the heat of jet engines. In the case of passive missile guidance systems, missiles which use infrared seeking are often referred to as "heat-seekers". Many objects such as vehicle engines and aircraft generate and retain heat, and as such, are especially noticeable in the infrared wavelengths of light compared to objects in the background. Early infrared seekers were most effective in detecting infrared radiation with shorter wavelengths, such as the 4.2µm emissions of the carbon dioxide efflux of a jet engine. Modern infrared seekers operate in the 8 - 12µm wavelength range, which is absorbed least by the atmosphere. For example, generally longer wavelength infrared (LWIR) 8 - 12µm will suffer less signal transfer than shorter wavelength IR (SWIR) in haze and fog. Contact REFLEX Analytical to discuss your requirement. Available in a 1.0" diameter. Custom components are encouraged and quoted upon request.

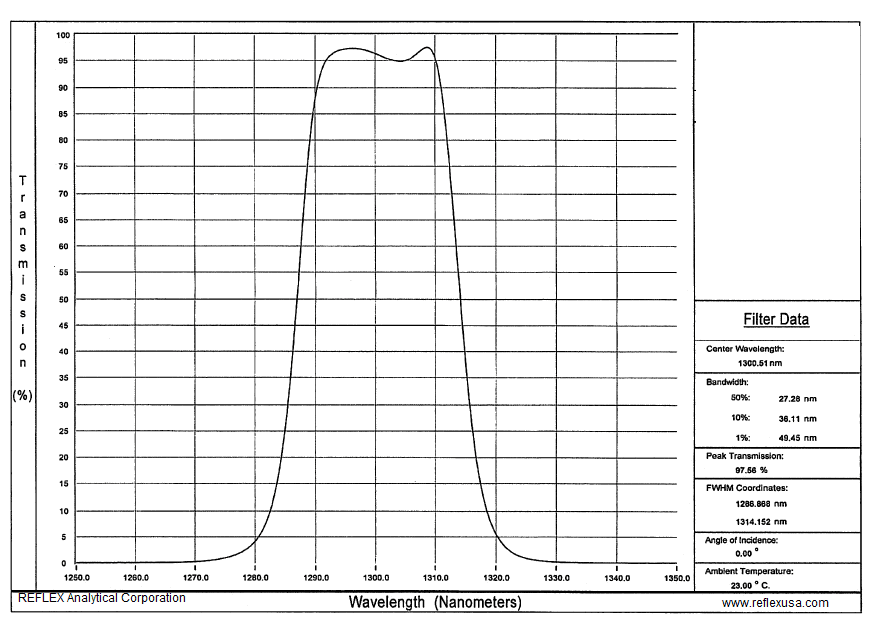

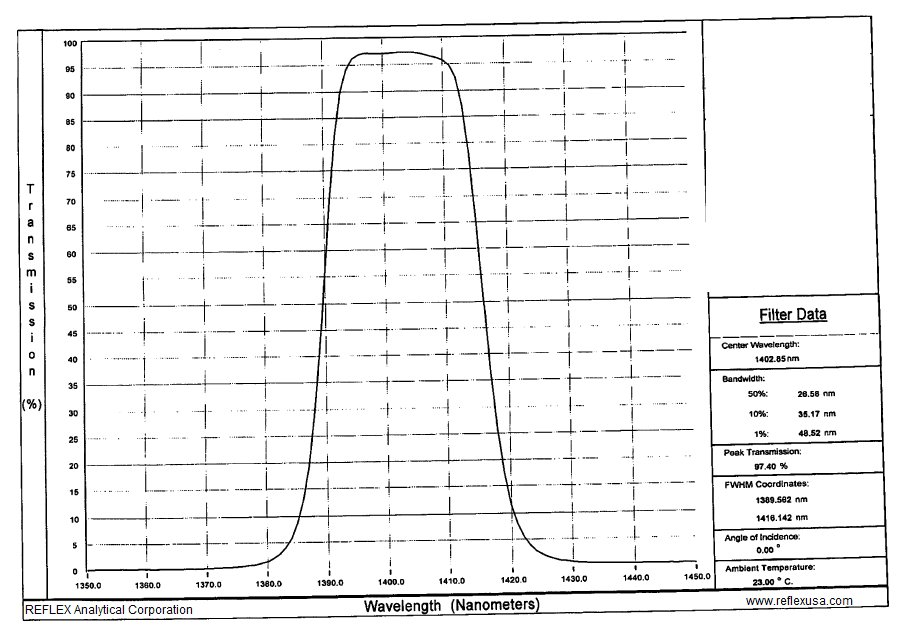

1.30µm Infrared Bandpass Filter 1.30µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Transmission Curve CLICK HERE 25mm Diameter x 5mm Thickness $869.00 IRBPF130	1.40µm Infrared Bandpass Filter 1.40µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Transmission Curve CLICK HERE 25mm Diameter x 5mm Thickness $869.00 IRBPF140
2.70µm Infrared Bandpass Filter 2.70µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Water Vapor Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF270	2.95µm Infrared Bandpass Filter 2.95µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Water Vapor Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF295

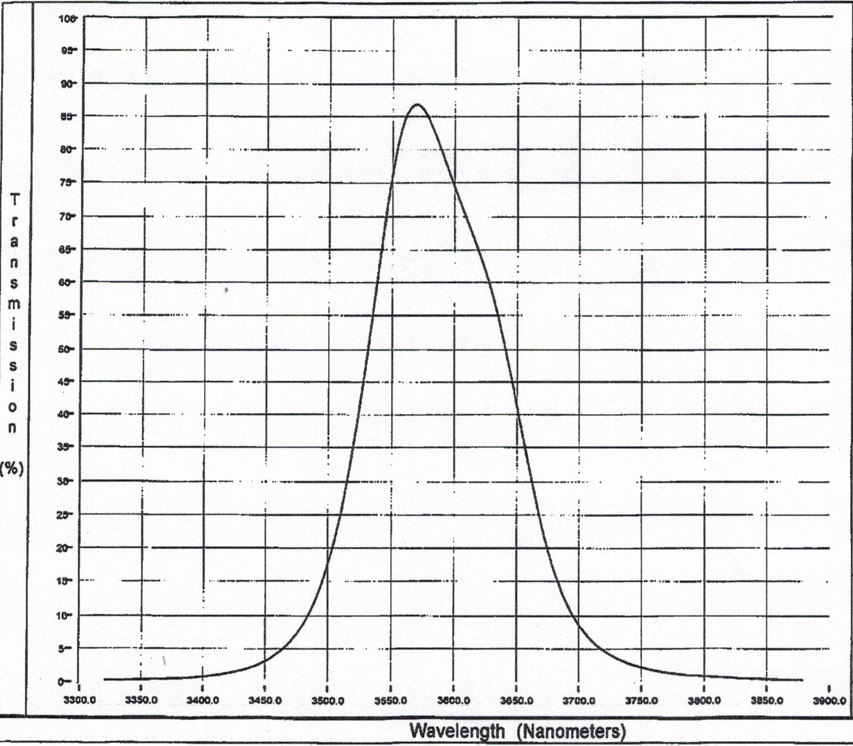

3.46µm Infrared Bandpass Filter 3.46µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Methanol and Ethanol Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF346	3.60µm Infrared Bandpass Filter 3.60µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Formaldehyde Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF360

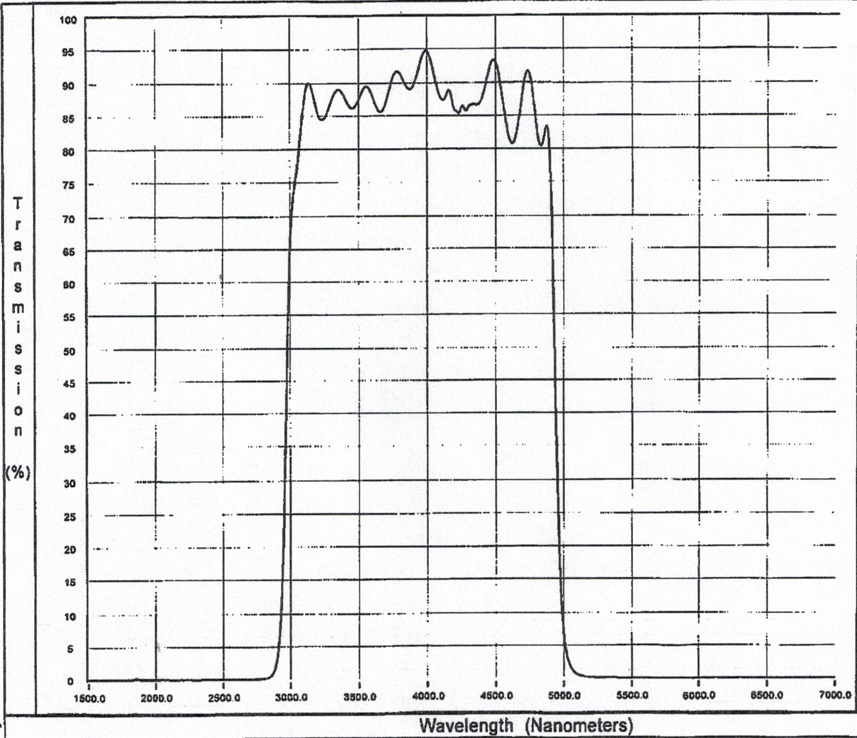

4.0µm Infrared Bandpass Filter 4.0µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. SWIR Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF40	4.26µm Infrared Bandpass Filter 4.26µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. CO2 Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF426

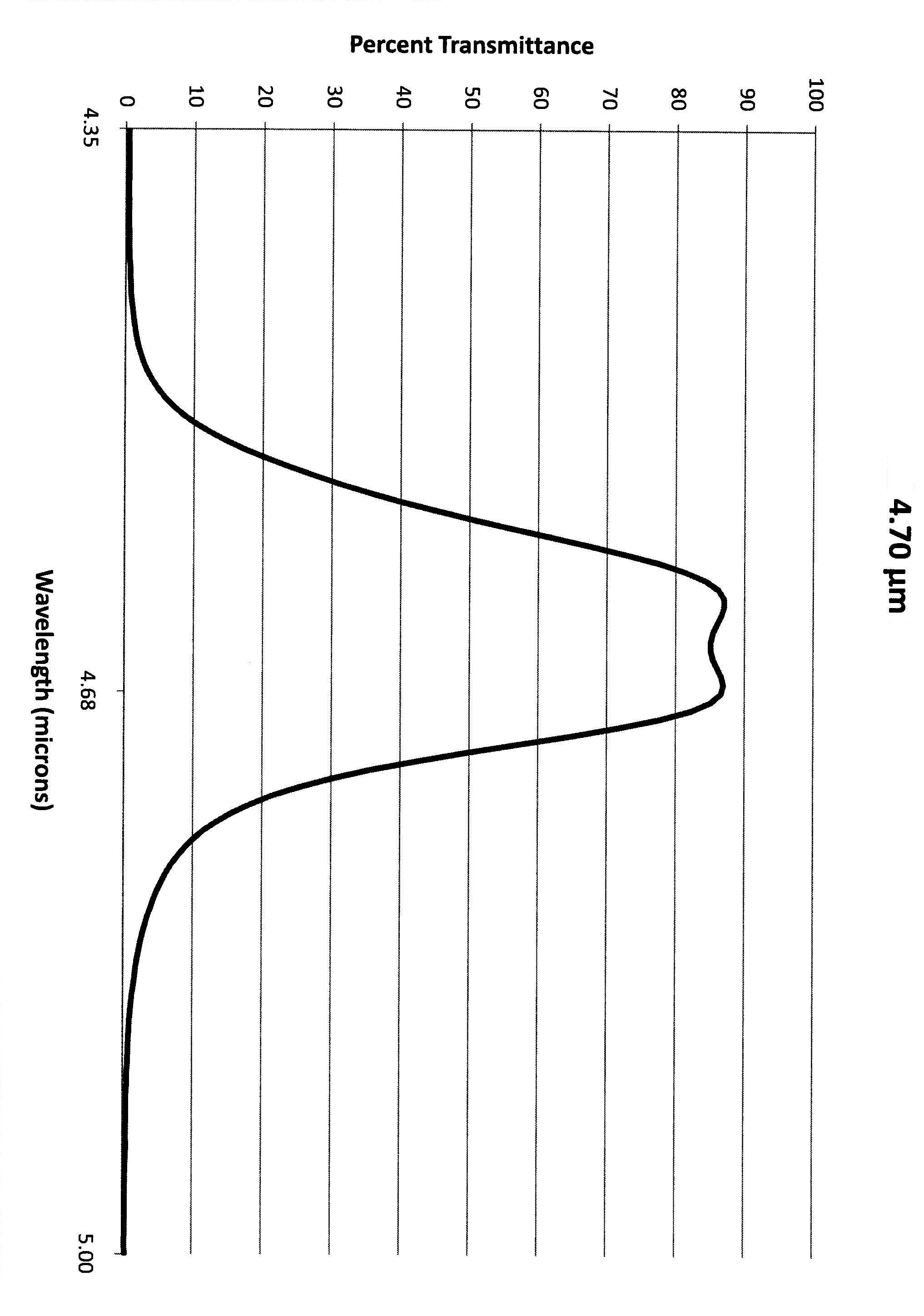

4.67µm Infrared Bandpass Filter 4.67µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. CO Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF467	5.30µm Infrared Bandpass Filter 5.30µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. NO Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $869.00 IRBPF53
10.0µm Infrared Bandpass Filter 10.0µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. FIR Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $1,579.00 IRBPF10	10.6µm Infrared Bandpass Filter - 12.5mm Diameter 10.6µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. CO2 Laser Wavelength Spectral Transmission Curve CLICK HERE 12.5mm Diameter x 1mm Thickness $899.00 IRBPF106125

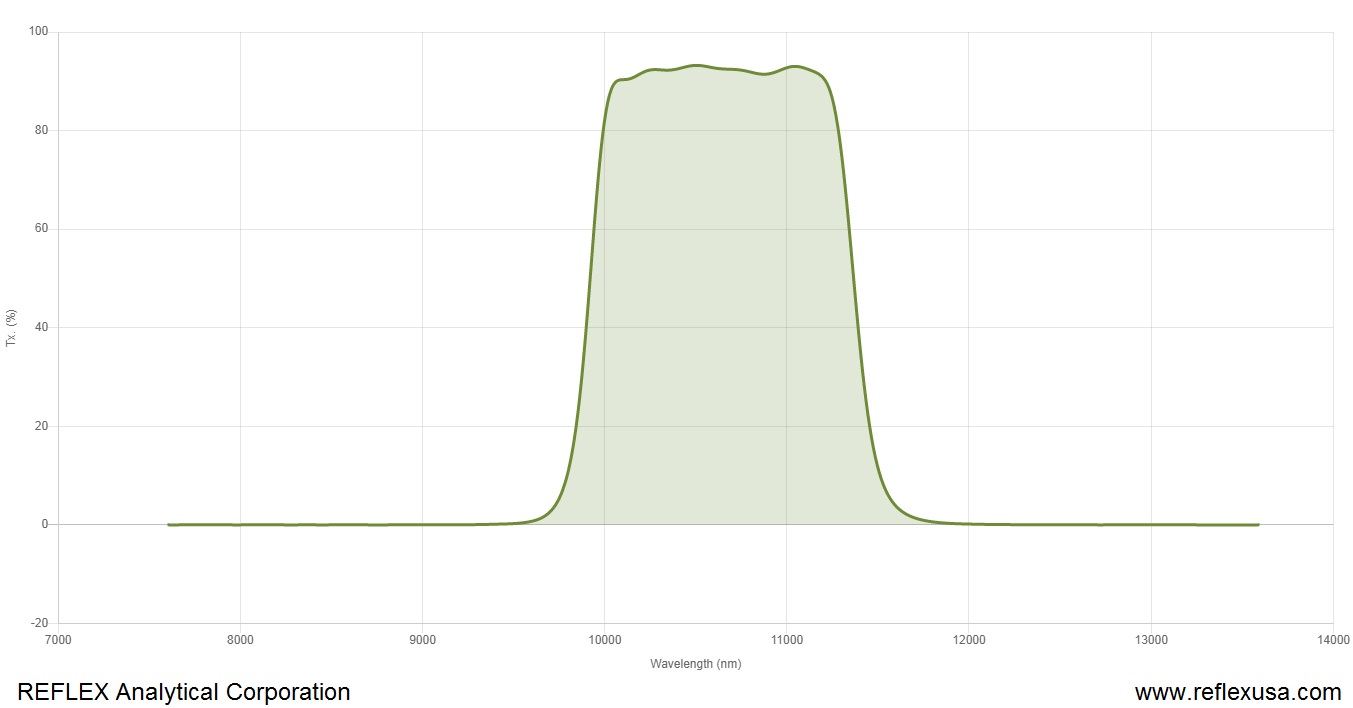

10.6µm Infrared Bandpass Filter - 25mm Diameter 10.6µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. CO2 Laser Wavelength Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $1,579.00 IRBPF10625	10.6µm Infrared Bandpass Filter - 50mm Diameter 10.6µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. CO2 Laser Wavelength Spectral Transmission Curve CLICK HERE 50mm Diameter x 1mm Thickness $3,199.00 IRBPF10650

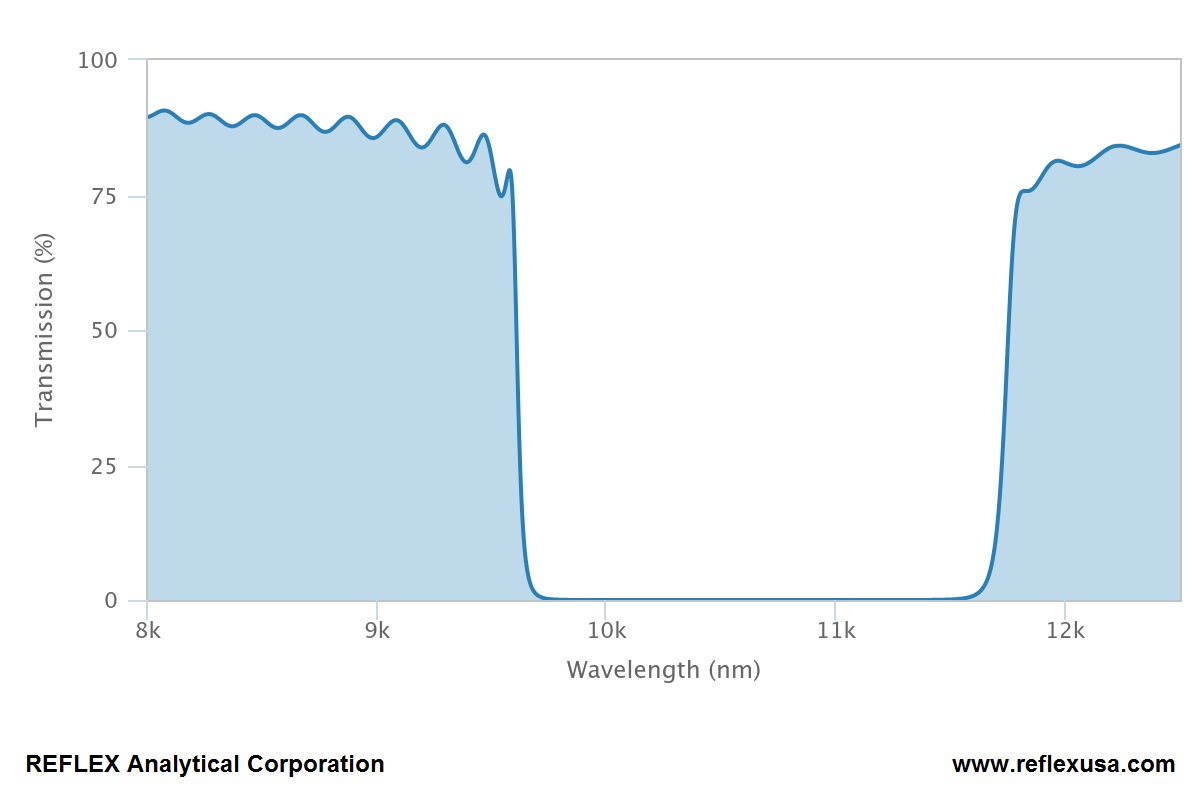

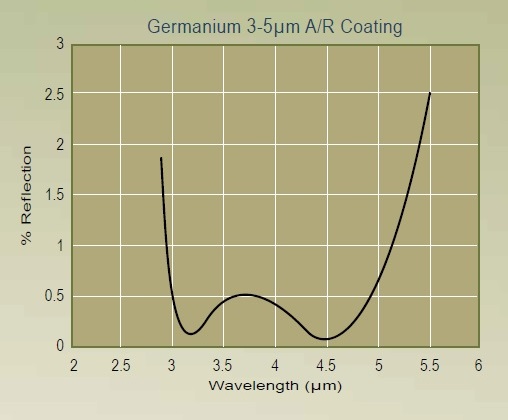

10.6µm Infrared Bandpass Blocking Filter 10.6µm Infrared Bandpass Blocking Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Transmission Curve CLICK HERE 25.4mm Diameter x 2mm Thickness $2,859.00 IRBPBF106254	3 – 5µm Infrared Broadband Filter, 25mm Diameter x 1mm Thickness 3 – 5µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Reflectance Curve CLICK HERE 25mm Diameter x 1mm Thickness $399.00 IRBBF3525
3 – 5µm Infrared Broadband Filter, 50mm Diameter x 1mm Thickness 3 – 5µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Reflectance Curve CLICK HERE 50mm Diameter x 1mm Thickness $629.00 IRBBF3550	8 – 12µm Infrared Bandpass Filter 8 – 12µm Infrared Bandpass Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $1,499.00 IRBPF81225

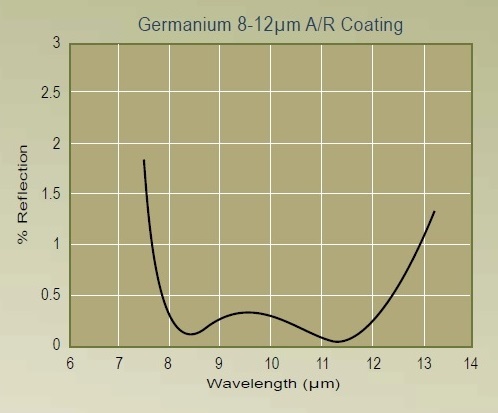

Custom Infrared Bandpass Filters Custom Infrared Bandpass Filters Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. CLICK HERE for Bandwidth % of CWL then select the wavelength range and submit a request for quotation Representative Performance Curve CLICK HERE IRCBPF25XXX DIA: RANGE:	8 – 12µm Infrared Broadband Filter, 25mm Diameter x 1mm Thickness 8 – 12µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Reflectance Curve CLICK HERE 25mm Diameter x 1mm Thickness $399.00 IRBBF81225
8 – 12µm Infrared Broadband Filter, 50mm Diameter x 1mm Thickness 8 – 12µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Reflectance Curve CLICK HERE 50mm Diameter x 1mm Thickness $629.00 IRBBF81250	2 – 14µm Infrared Broadband Filter, 25mm Diameter x 1mm Thickness 2 – 14µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Transmission Curve CLICK HERE 25mm Diameter x 1mm Thickness $399.00 IRBBF21425

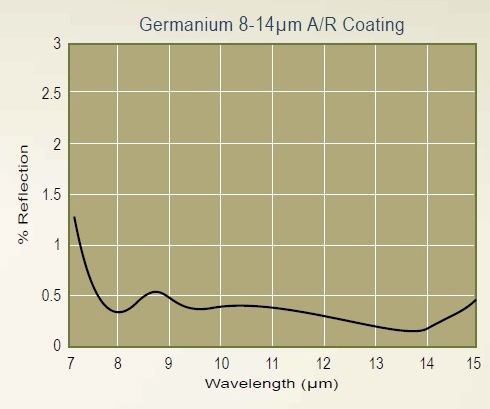

2 – 14µm Infrared Broadband Filter, 50mm Diameter x 1mm Thickness 2 – 14µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Transmission Curve CLICK HERE 50mm Diameter x 1mm Thickness $649.00 IRBBF21450	8 – 14µm Infrared Broadband Filter, 25mm Diameter x 1mm Thickness 8 – 14µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Reflectance Curve CLICK HERE 25mm Diameter x 1mm Thickness $399.00 IRBBF81425
8 – 14µm Infrared Broadband Filter, 50mm Diameter x 1mm Thickness 8 – 14µm Infrared Broadband Filter Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Spectral Reflectance Curve CLICK HERE 50mm Diameter x 1mm Thickness $649.00 IRBBF81450	Standard Infrared Long Pass Filters Standard Infrared Long Pass Filters Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Representative Spectral Transmission Curve CLICK HERE (select wavelength from drop down menu) $359.00 IRLPF125XXX DIA: WL:
Standard Infrared Long Pass Filters Standard Infrared Long Pass Filters Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Representative Spectral Transmission Curve CLICK HERE (select wavelength from drop down menu) $629.00 IRLPF25XXX DIA: WL:	Standard Infrared Long Pass Filters Standard Infrared Long Pass Filters Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Representative Spectral Transmission Curve CLICK HERE (select wavelength from drop down menu) $929.00 IRLPF50XXX DIA: WL:
Custom Infrared Long Pass Filters Custom Infrared Long Pass Filters Precision fabricated infrared filters with high quality optical properties for optimal spectral performance. Representative Spectral Transmission Curve CLICK HERE (select the diameter and wavelength within range from drop down menus and submit a request for quotation) IRLPFXXXXX DIA: RANGE:
